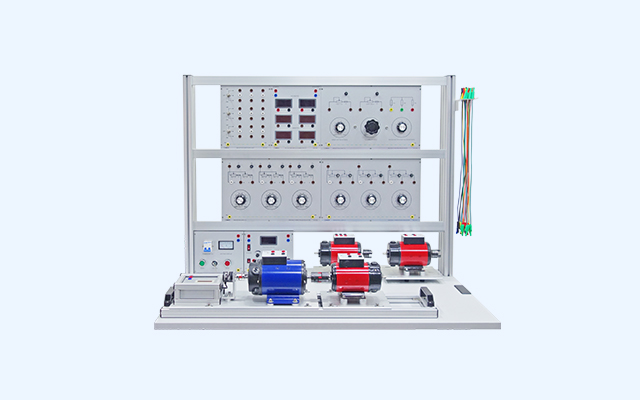

CEM-201  DC Motor Technology Trainer

  • This trainer is designed to meet the  operation training of various DC electric machines, covering
     DC series motor, DC shunt motor, DC  compound generator and related testing panels.
  • All motors and generators come with  standard aluminium profile mounting base, coupling and foot
     pad   for easy experimental combination via universal shaft couplings of  same height.
  • The frame adopts standard aluminum  profile with modular experiment panel design, thus, making it
     easily to build different experiment  combination on the flexible two-layer structure. All the upper parts
     are removable including the experiment  module, power supply module and frame support.
  • All terminals are led out on printed  composite panel with 4mm safety socket and connected by
     full sealing sheathed pluggable  connector. The complete unit is movable with lockable truckles on
     bottom and available for training  content extension by using other CHOIEO modular electrical units.

> TRAINING CONTENT
  • Acknowledge of motor / instrument /  rheostat
  • Cold resistance measurement of DC  motor/generator armature winding
  • Starting / speed regulation / direction  control of DC separately excited motor
  • DC generator no-load / external /  regulating characteristics
  • DC shunt generator self-excitation and  external characteristics
  • DC compound generator distinction and  external characteristics
  • DC shunt motor operating / mechanical /  regulation characteristics and dynamic braking
  • DC series motor operating / mechanical /  regulation characteristics
  • Mechanical characteristics of separately  excited DC motor under different running states
       Mechanical characteristics under  electric running and regenerative braking state
       Mechanical characteristics under  electric running and reverse braking state
       Mechanical characteristics under  dynamic braking state

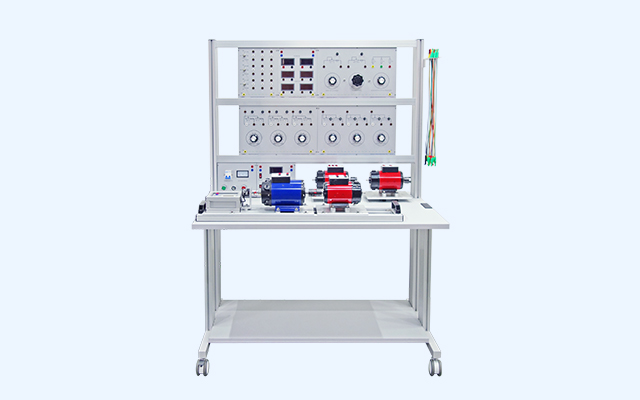

CEM-301  AC & DC Motor Technology Trainer

  • This trainer is designed to meet the  operation training of various electric machines, covering a wide
     range for electrical machine control  technologies for both AC and DC motors and generators.
  • All motors and generators come with  standard aluminium profile mounting base, coupling and foot
     pad   for easy experimental combination via universal shaft couplings of  same height.
  • The frame adopts standard aluminum  profile with modular experiment panel design, thus, making it
     easily to build different experiment  combination on the flexible two-layer structure. All the upper parts
     are removable including the experiment  module, power supply module and frame support.
  • All terminals are led out on printed  composite panel with 4mm safety socket and connected by
     full sealing sheathed pluggable  connector. The complete unit is movable with lockable truckles on
     bottom and available for training  content extension by using other CHOIEO modular electrical units.

> TRAINING CONTENT
    DC Motor
  • Acknowledge of motor / instrument /  rheostat
  • Cold resistance measurement of DC  motor/generator armature winding
  • Starting / speed regulation / direction  control of DC separately excited motor
  • DC generator no-load / external /  regulating characteristics
  • DC shunt generator self-excitation and  external characteristics
  • DC compound generator distinction and  external characteristics
  • DC shunt motor operating / mechanical /  regulation characteristics and dynamic braking
  • DC series motor operating / mechanical /  regulation characteristics
    Asynchronous Motor
  • Three phase squirrel cage asynchronous  motor working characteristics
       Motor slip ratio measurement
       Stator winding cold resistance  measurement
       Stator winding head/tail end judgment
       No-load / short circuit / load  experiment
  • Three phase wound rotor asynchronous  motor starting / speed regulation and torque test
  • Single phase resistor starting  asynchronous motor
       Stator winding cold resistance  measurement
       No-load / short circuit / load  experiment
  • Single phase capacitor starting  asynchronous motor
       Stator winding cold resistance  measurement
       No-load / short circuit / load  experiment
  • Single phase capacitor running  asynchronous motor
       Stator winding cold resistance  measurement
       Effective turns ratio measurement
       No-load / short circuit / load  experiment
  • Dual speed asynchronous motor four /  two-pole working characteristics testing
    Synchronous Motor
  • Three phase synchronous generator running  characteristics
       Armature winding cold resistance  measurement
       No-load / three phase short circuit  experiment
       External characteristics under  resistance load
      Regulation characteristics under  resistance load
  • Three phase synchronous motor
       Asynchronous starting
       V type curve under different output  power
       Working characteristics measurement
  • Parametric measurement of three phase  synchronous generator
       Synchronous reactance measurement
       Negative sequence reactance and  resistance measurement
       Zero sequence reactance measurement
       Subtransient / transient reactance  measurement

  • Mechanical characteristics of separately  excited DC motor under different running states
       Mechanical characteristics under  electric running and regenerative braking state
       Mechanical characteristics under  electric running and reverse braking state
       Mechanical characteristics under  dynamic braking state
  • Mechanical characteristics of three phase  asynchronous motor under different running states
       Mechanical characteristics under  electric running and generating braking state
       Mechanical characteristics under  electric running and reverse braking state
       Mechanical characteristics under  dynamic braking state
       No-load loss curve


CE-120  Motor and Electric Drive Technology Trainer

  • This trainer is designed to meet the  operation training of various AC and DC motors, covering a wide
     range for electrical machine control and  drive technologies.









CE-123  Motor, Transformer and Electrical Technology Trainer


  • This is a comprehensive electrical  engineering experimental system, providing a wide training range
     for electric motors and control  transformers, as well as the related drive and control technologies.
