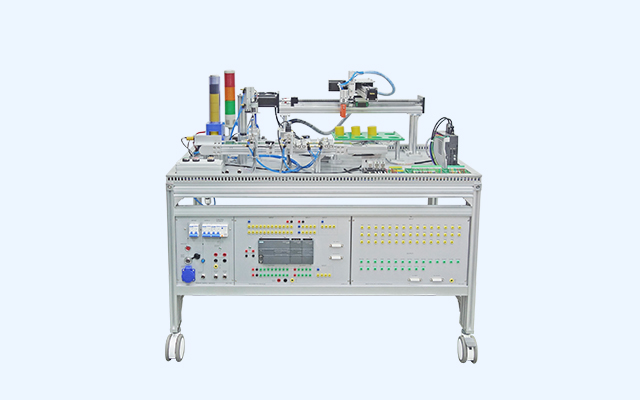

CAP-208S Advanced Dynamic PLC Training System

    DETAILS

      • The training   systems focus on conveying authentic application knowledge and information   on
         programmable logic control (PLC) and   demonstrate how such systems are networked with sensors
         and actuators. The fundamentals and   operation of PLC systems are graphically explored using a
         multitude of examples, explanations,   exercises and practical assignments.
      • All the programming objects are available   for motion control with excellent dynamic performance that
         highly simulate the automation control   system used in industrial field.
      • The frame adopts standard aluminum   profile with modular experiment panel design, thus, making it
         easily to build different experiment   combination on the flexible two-layer structure. All the upper parts
         are removable including the experiment   module, power supply module and frame support.
      • All terminals are led out on printed   composite panel with 4mm safety socket and connected by
         full sealing sheathed pluggable   connector. The complete unit is movable with lockable truckles on
         bottom and available for training   content extension by using other CHOIEO modular units.



    >   TRAINING CONTENT
        PLC mainframe
      • Work with STEP 7 programming software
      • Data types
      • Creating statement lists
      • Programming languages STL, LAD and FBD
      • Programming of binary operations
      • Programming of counters and time makers,   comparison and arithmetic functions
      • Program structure, invoking subroutings
      • Putting into operation and testing



        Dynamic demo systems
      • Spray painting machine control system
      • Cutting machine control system
      • Stepping motor motion control system
      • CNC tool magazine control system
      • Thermostatic closed loop control system
      • Punching machine automatic control system
      • Electromagnetic handling control system
